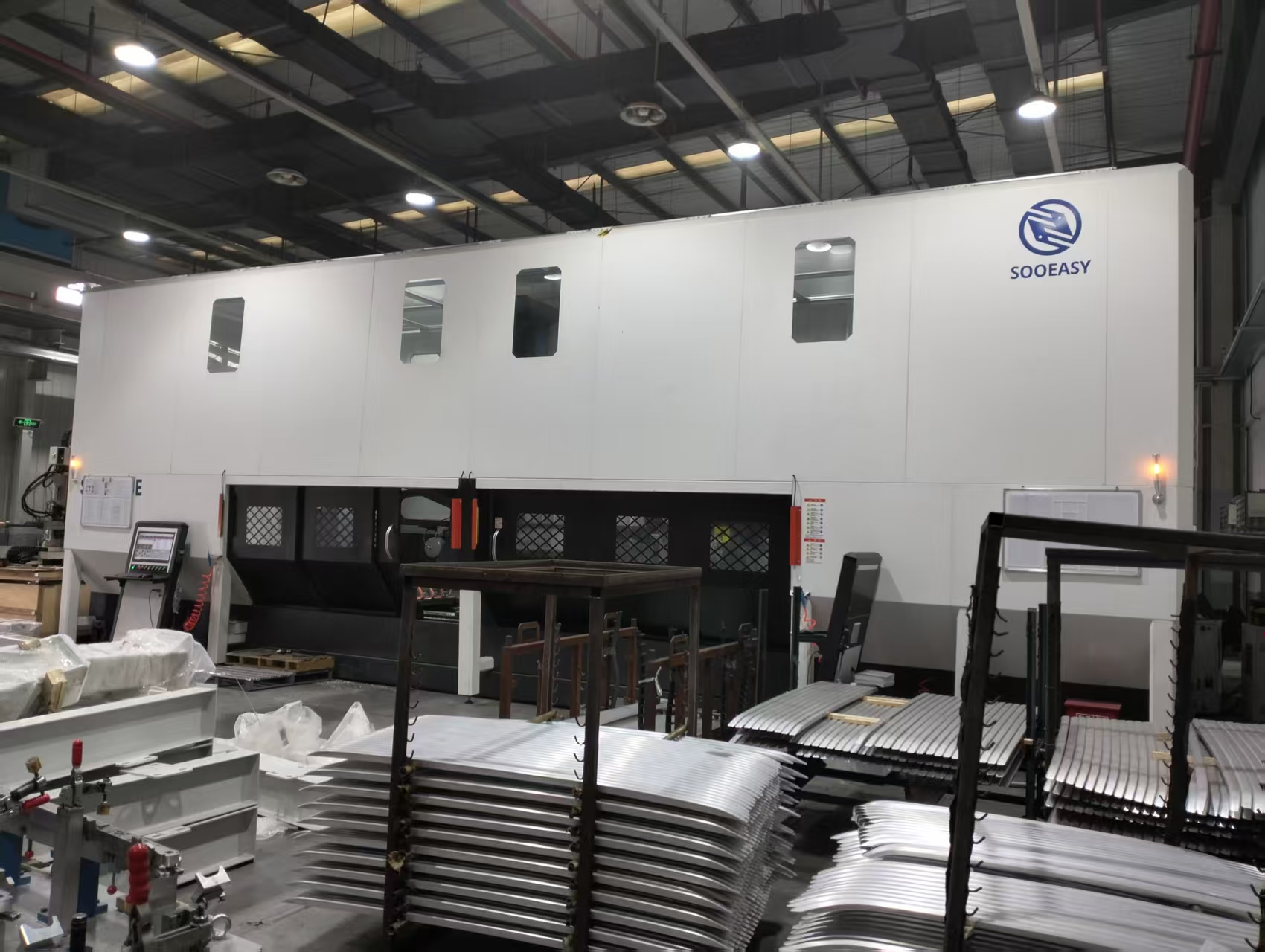

Semi-standard Machine Platform 3 - Double-Spindle 5-Axia Simultaneous Machining Center Series SV-DL CNC Series

Basic Info.

Model NO.

SV-DL65UE

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Contour Control

Control Method

Semi-Closed Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Performance Classification

High-End CNC Machine Tools

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Tool Changer

Atc 12 Tools Changer Robot

Color

Customer's Requirement

Guideways

Taiwan Linear Guideways

Control System

Osai

Machine Type

Vertical Profile Machining Center

Video Outgoing-Inspection

Provided

Machinery Test Report

Provided

Applicable Industries

New Energy, Rail, Aerospace, Construction, Ship

Voltage

380V50Hz and Customer Request

Key Selling Points

High Efficiency, High Precision, High Speed, Multi

Time of Tool Change

3 Seconds

OEM/ODM

Provided

Processing Type

Drilling, Tapping, Milling, Chamfering, Boring

Transport Package

Moisture-Proof Inner Packaging,Wooden Case Outside

Specification

10000*3500*4200 mm

Trademark

SOOEASY

Origin

Wuxi China

HS Code

8457101000

Production Capacity

500 Sets/Year

Packaging & Delivery

Package Size

1010.00cm * 360.00cm * 430.00cm

Package Gross Weight

20550.000kg

A. Key Application Industries

1. Automotive Industry
2. Aerospace & Defense Industry
3. New Energy Industry
4. Construction & Building Materials Industry
5. Furniture & Interior Decoration Industry
6. Electronics & Electrical Equipment Industry
7. Shipbuilding Industry
8. Rail Transit Industry
9. Machinery Manufacturing Industry
10. Sports Equipment Industry

B.Typical Processed Products

Industry	Processed Products
Automotive Industry	- Lightweight aluminum alloy structural parts (e.g., 6.5m-long chassis beams, door frames, roof rails)- New energy vehicle (NEV) battery case profiles (long-span support beams) and battery module support frames- Extruded aluminum trim strips, window frames, and integrated body frame profiles requiring multi-angle machining
Aerospace & Defense Industry	- Aircraft aluminum alloy structural profiles (e.g., wing ribs, fuselage stringers up to 6.5m in length)- Precision titanium alloy/aluminum alloy profiles for aerospace components (complex contour machining via A/C-axis)- Radar antenna support profiles and satellite structural frame parts (high-precision drilling and milling across long strokes)
New Energy Industry	- 6.5m-long solar panel mounting aluminum profiles and bracket rails- Wind turbine blade connection profiles and tower structural profiles (deep processing enabled by 700mm Z-stroke)- Energy storage cabinet frame profiles and battery module support profiles (multi-surface machining via dual heads)
Construction & Building Materials Industry	- Curtain wall aluminum profiles (e.g., 6.5m facade mullions, transoms with complex angles processed by A/C-axis)- Long-span door/window aluminum profiles and sliding door rails- Decorative aluminum profiles (ceiling keels, wall cladding strips) requiring variable spindle-worktable distance (150~850mm)
Furniture & Interior Decoration Industry	- Long aluminum alloy furniture frames (e.g., 6m+ table legs, cabinet frames)- Decorative profiles for wardrobes/kitchen cabinets (edge strips, handles) and multi-angle curtain tracks- Partition profiles and interior door frames (processed via A/C-axis for beveled edges)
Electronics & Electrical Equipment Industry	- Long aluminum heat sink profiles for electronic devices (e.g., server radiators, LED cooling fins up to 6.5m)- Cabinet frames for electrical control panels and large equipment chassis profiles- Precision aluminum profiles for electronic component brackets (high-precision positioning via 1200mm Y-stroke)
Shipbuilding Industry	- Marine aluminum alloy hull structural profiles (long-span deck beams, cabin partition profiles)- 6.5m-long deck railings and pipeline support profiles (corrosion-resistant material machining)- Ship interior anticorrosive aluminum alloy profiles (multi-surface milling enabled by dual heads)
Rail Transit Industry	- High-speed rail/metro interior trim profiles (6.5m ceiling strips, handrail supports)- Car body aluminum alloy structural profiles and window frame profiles (complex angle machining via A/C-axis)- Train bogie component profiles and long-span cable trough profiles (deep drilling via 700mm Z-stroke)
Machinery Manufacturing Industry	- Machine tool structural profiles (e.g., 6.5m gantry frames, guide rails with high straightness)- Industrial robot arm profiles and automation equipment frame profiles (multi-axis contour machining)- Hydraulic/pneumatic cylinder sleeves and mechanical connection profiles (precision machining across full X/Y/Z strokes)
Sports Equipment Industry	- Long aluminum alloy profiles for fitness equipment (e.g., 6m+ treadmill frames, bicycle frames)- Sports venue facilities (stadium handrails, long-span partition profiles)- Lightweight aluminum profiles for outdoor sports gear (complex shapes processed by A/C-axis)

C. Core Specification Advantages

The dual-head 5-axis profile machining center is engineered for high-precision, efficient machining of long extruded profiles (up to 6.5m in length, supported by X-stroke 6500mm) with complex shapes. Key advantages enabled by its specifications:

1. Long-stroke capability: X-stroke 6500mm allows one-time machining of extra-long profiles (e.g., 6m+ structural parts), eliminating segmental processing and improving precision;
2. Broad machining range: Y-stroke 1200mm and Z-stroke 700mm support large-size workpieces and deep processing (e.g., deep drilling, cavity milling);
3. Multi-angle flexibility: A/C-axis travel (±120°/±320°) enables complex contour machining (e.g., bevels, curved surfaces) and multi-surface processing without workpiece repositioning;
4. Adjustable spindle-worktable distance: 150~850mm variable gap adapts to workpieces of different heights (e.g., thin trim strips to thick structural beams), enhancing versatility.

D. Supplementary Notes

• Typical processed materials include aluminum alloy (6061, 6063, 7075), stainless steel, carbon steel, titanium alloy, and other metal profiles.
• Ideal for scenarios requiring high dimensional accuracy (±0.01mm), long-stroke machining, and complex contour forming, the equipment achieves simultaneous or sequential processing of both ends/multi-surfaces via dual heads, doubling production efficiency compared to single-spindle machines.

Processing Range and Main Control Parameters (Schematic Diagram Placement for Screenshots)

Meet the processing of aluminum alloy products with maximum size of 6500*1200*700

Main Equipment Parameters

Technical Specification Parameter Table

Item	Sub-Item	Unit	Parameter
Travel	X-Axis (Spindle Forward/Backward Movement)	mm	6500 (Dual-head travel; minimum distance between two heads: 1500mm)
	Y-Axis (Spindle Left/Right Movement)	mm	1200
	Z-Axis (Spindle Up/Down Movement)	mm	700
	A/C Axis Travel	°	±120° / ±320°
	Distance from Spindle Nose to Worktable	mm	150~850
Worktable	Dimensions (Length × Width)	mm	6500 × 650
	Maximum Load Capacity	kg/m²	1000
	T-Slot Width	mm	18
	T-Slot Center Spacing	mm	100
Spindle	Maximum Speed	rpm	24000
	Tool Taper	-	HSK 63F
	Spindle Balance Grade	-	G1 (ISO1940)
	Mounting Type	-	Vertical
	Tool Holder Specification	-	HSK 63F
	Power (S1/S6)	KW	15/17
	Torque (S1/S6)	Nm	11.9/13.5
	Maximum Output Speed	rpm	24000
A/C Rotary Axes	Positioning Accuracy	Arcsec	20 / 20
	Repeat Positioning Accuracy	Arcsec	10 / 10
	Backlash	Arcmin	1 / 1
	Rated/Maximum Torque	Nm	380/570 / 460/980
Feed Rate	Rapid Traverse Speed (X/Y/Z)	m/min	50 / 40 / 36
	Cutting Feed Rate (X/Y/Z)	mm/min	1~20000 / 1~20000 / 1~20000
	Positioning Accuracy (X/Y/Z)	mm	0.04 (Full Stroke) / 0.02 (Full Stroke) / 0.01 (Full Stroke)
	Repeat Positioning Accuracy (X/Y/Z)	mm	±0.01/500 / ±0.01/300 / ±0.01/300
X/Y/Z Axis Drive Specifications	Servo Motor Power	kw	3.0 / 3.0 / 3.0
	Rated/Maximum Torque	Nm	18.6/54 / 18.6/54 / 18.6/54
	Maximum Output Speed	rpm	3000 / 3000 / 3000
Tool Magazine	Type	-	Umbrella-Type
	Tool Holder Specification	-	HSK63F
	Number of Tools	pcs	12
	Maximum Tool Diameter/Length/Weight	mm, kg	Φ75mm / 300mm / 8kg
	Tool Change Time (Tool-to-Tool)	sec	3
Energy Supply	Transformer Specification	KVA	50
	Air Supply Pressure	Mpa	0.6Mpa - 0.9Mpa
Lubrication	Ball Screw Lubrication	-	Automatic Guideway Oil Lubrication System
	Linear Guide Lubrication	-	Automatic Guideway Oil Lubrication System
Cooling	Cooling Motor Power	KW	0.75
	Cutting Cooling	-	Water Jet Cutting Cooling System
Chip Removal Equipment	Chip Conveyor	-	Chain Plate Chip Conveyor
	Motor Power	KW	0.75
Protection Equipment	Machine Tool Protection	-	Fully Enclosed Protective Sheet Metal Cover
	Linear Guide Protection (X/Y Axes)	-	Bellows-Type Guideway Protection
Machine Tool Dimensions	Height (Z-Axis Positive Limit)	mm	Approx. 4200
	Width (Y-Axis Negative Limit)	mm	Approx. 3500
	Total Length + Chip Conveyor	mm	Approx. 10000
	Total Weight	T	Approx. 20
Power Supply Requirement	-	-	3Φ380V 50HZ
Operating Environment Requirements	Ambient Temperature (Average ≤35ºC in 24h)	ºC	5~40
	Relative Humidity	%	30~75
	Vibration Intensity	-	Less than 0.5G
	Foundation Requirement (Floor Load Capacity)	T/m²	2
	-	-	Away from dusty, corrosive/organic gas environments
	Grounding Resistance	Ω	Less than 10Ω (Independent grounding, no series grounding)

CONFIGURATION OF 5-AXIS PROFILE MACHINING CENTER

1. Brand and Specifications of Key Components

No.	Component Name	Brand	Country of Origin	Remarks
1	Machine Bed	National Premium Grade	China	HT300 (Double Aging Treatment)
2	Control System	OSAI	Italy	-
3	Spindle Unit	HSD/HITECO	Italy	HSK63F
4	Bearings	NSK/FAG	Japan/Germany	-
5	Ball Screws	THK/Hiwin/PMI	Japan/Taiwan, China	-
6	Linear Guides (X/Y/Z Axes)	THK/Hiwin/PMI	Japan/Taiwan, China	-
7	Tool Magazine	AIMACH/Relib/Okada	China/Taiwan, China	-
8	Pneumatic Components	SMC	Japan	-
9	Cables	Igus/Leoni	Germany	-
10	Cable Drag Chains	JFLO/Jibao	Joint Venture/Domestic	-
11	Low-Voltage Electrical Components	Schneider	France	-
12	Main Power Switch	Mitsubishi/Schneider	Japan/France	-
13	Reducers	Motovario/Alpha	France/Germany	X-Axis
14	Racks	YYC/KH	Taiwan, China	X-Axis

Note: In case of supply shortages, alternative brands of equivalent quality and grade may be used.
